    LS110





    ApplicationsFeature
    Touring performanceExtremely compact , Small enclosure, light weight;Configuration of WPE wavepath equidistant ac
    TheatreAll neodymium high sensitivity unit,great dynamic margins
    ChurchTouring performance、Theatre、Multipurpose hall、Church
    Multipurpose hallWith WCT (Wavefront Coupling Technology)





    Technical parameters

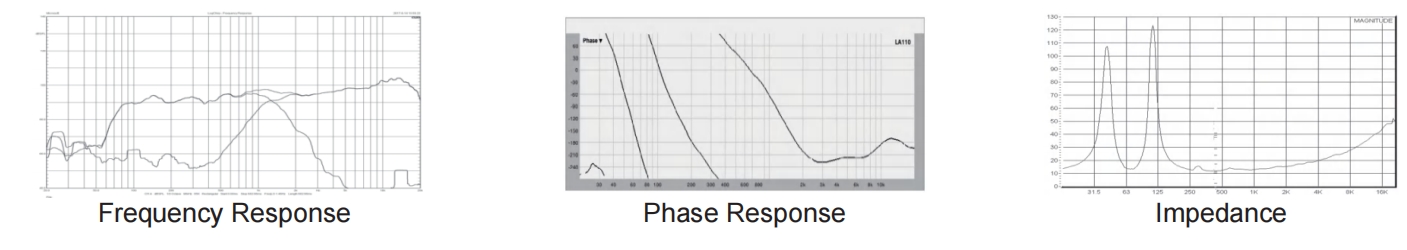

    Frequency response60 Hz-18 kHz(+3 dB) 50 Hz-20 kHz(-10 dB)
    Nominal directivity(-6dB)100°(H) 10°(V) adjustable
    Sensitivity (@1w/1m)HF/LF:112dB/103dB SPL
    Power RatingHF/LF:80W/350W
    ImpedanceHF/LF:16/16 ohm
    Maximum SPLHF:131/141dB SPL peak LF:128/138dB SPL peak
    Transducers

    LF:1x10" All Condition Woofer

    HF:1x3" Phase Correction compression driver



    Physical data

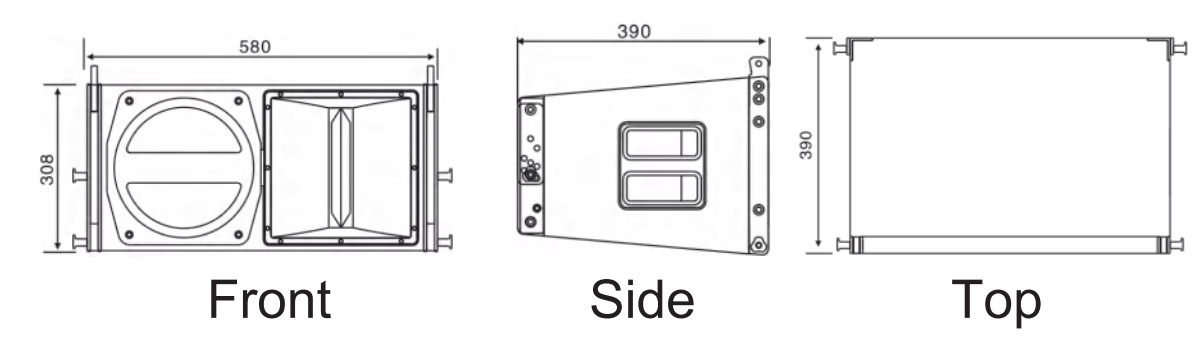

    Dimensions

    580x390x308mm


    Weight22.5Kg
    Connectors

    WP4*2,NEUTRIK NL4MP*2


    Speaker Cables

    WP4:1-2+...LF,3-4+...HF NL4:1+1-...LF,2+2-...HF

    Material

    Imported multi-plywood Environmental waterproof and anti corrosion coatings

    Finsh

    Black Polyurea paintings


    GrilleBlack epoxy mesh grille with acoustically reticulated cloth

    meshDPR (Double perforation Rate) double perforation rate technology design, in which the perforation rate of the mid-high transmitting area is more than 90%, which greatly improves the sound transmission efficiency and reduces the acoustic crosstalk of the grille.
    Rigging

    0、1、2、3、4、5、7.5、10°Adjustable
