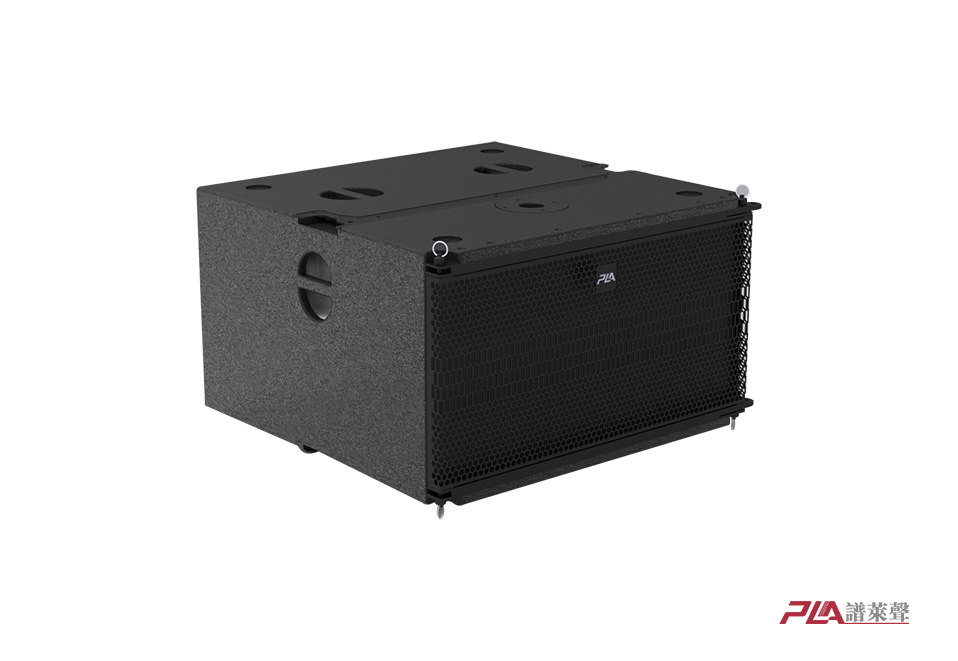

    LS10S



    Applications
    		Feature

    Touring performance

    Subwoofer with LS10


    Club, multi-function hall

    The most cost-effective small and medium-sized line array

    Churc

    Extremely compact , Small enclosure, light weight


    High SPL, great dynamic headroom



    		Multi-angle adjustable mounting mode with adjustable support



    Technical parameters

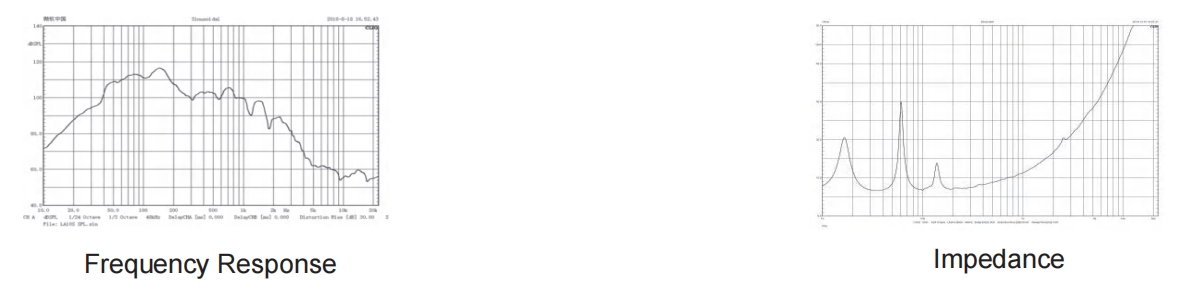

    Frequency response40Hz~ 150Hz(士3dB )
    Nominal Coverage(-6dB)Omnidirectional
    Sensitivity (@1w/1m)98 dB SPL
    Power Rating （AES）

    500W(AES


    Nominal Impedance8ohm
    Max SPL

    125 dB SPL peak


    Drivers

    1 X 15"woofer (75mm voice coil)



    Physical data

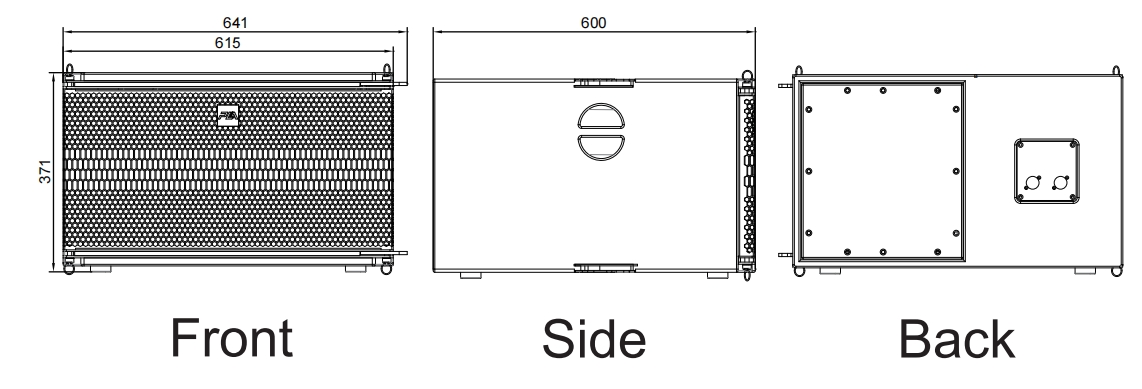

    Dimensions

    371 X 641 X 600m


    Weight35Kg
    Connectors

    2 X NL 4 connectors


    Speaker Cables1+1-...
    Materials

    15mm, 18mm Baltic birch plywood


    Finsh

    Black Polyurea paintings


    Grille

    Black epoxy mesh grille with acoustically

    reticulated clot


    Rigging

    0,-5 degree adjustable
