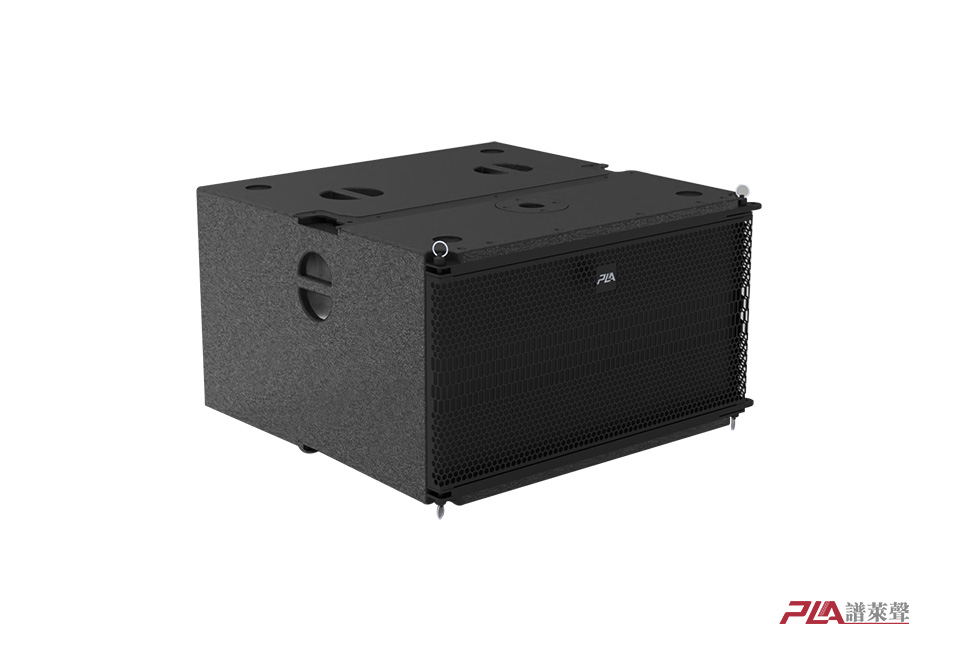

LS10SP

Applications	Feature
Touring performance	Built-in amplifier, se lf-powered subwoofer with LC10
Club, multi-function hall	Compact 1 5inch subwoofer speaker
Church	Extremely compact ,small enclosure, light weight

Technical parameters

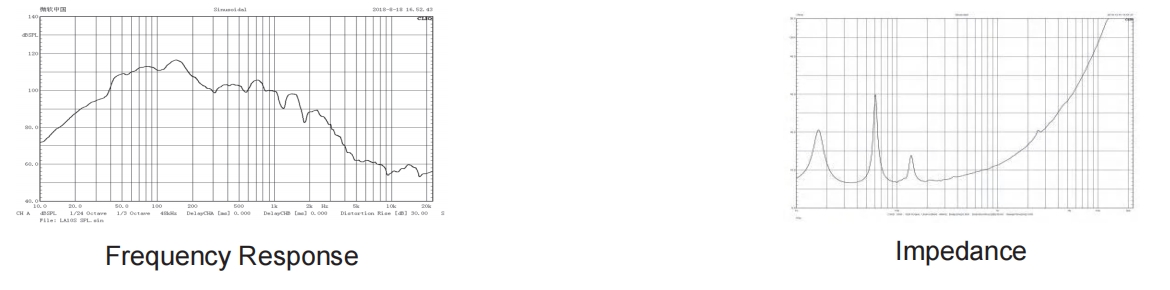

Frequency response	40Hz ~ 150Hz(士3dB )
Nominal Coverage(-6dB)	Omnidirectional
Maximum SPL	125 dB SPL peak
Drivers	200-240V ~ 50-60Hz
Power requirement	Dual channel 1 200W
Amplifier module	Dual channel 1 200W
Power requirement	0.82%
Signal to Noise Ratio	104dB
Output electric circuit	Class D circult
Cooling system	Airflow from back to front, Forced cooling

Physical data

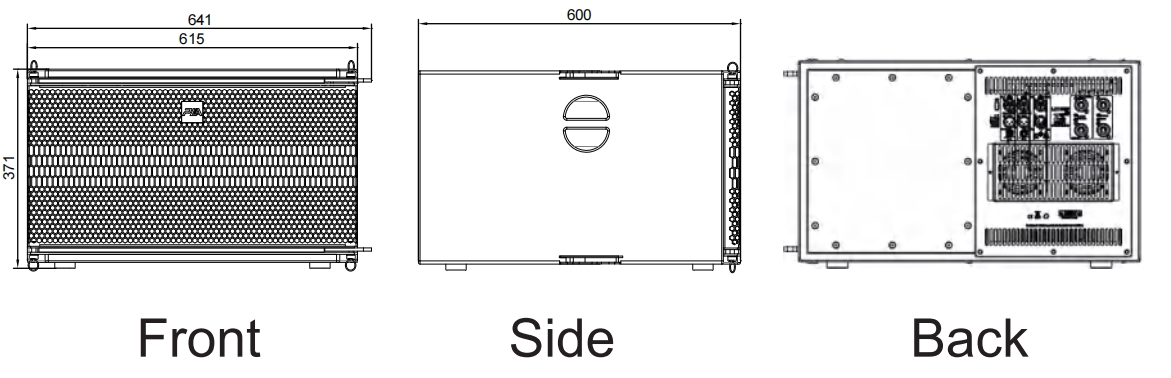

Dimensions	371 X 641 X 600mm
Weight	35Kg
Connectors	XLR;POWER CON; NEUTRIK NL4; USB
Speaker Cables	1+1- ( NL _4 NEUTRIK 1 )； 1+1- ( NL .4 NEUTRIK 2 )
Materials	15mm 18mm Baltic birch plywood
Finsh	Black Polyurea paintings
Grille	Black epoxy mesh grille with acoustically reticulated cloth
Rigging	0、-5° degree adjustabl
