F1600D

High power, multi-channel: F1600D, four channels

Features:

1. DANTE network audio optional

2. Network TCP/IP control, capable of managing multiple devices

3. Remote switch on/off

4. Using a 4.3 inch IPS capacitive touch screen

5. Built in DSP digital processor, 48k/24bit

6. Supports multiple online methods: USB, TCP/IP, RS232, RS485, and third-party open interfaces

7. Real time remote monitoring of power amplifier working status

Technical parameters:

four × 800W/8 Ω four channel

four × 1600W/4 Ω four channel

four × 2400W/2 Ω four channel

two × 3200W/8 Ω bridge stereo

two × 6000W/4 Ω bridge stereo

two × 8000W/2 Ω bridge stereo

two × 3200W 70V/100V constant voltage output

Frequency response (1W, 8 Ω): 20Hz-20kHz ± 0.5dB

Total harmonic distortion (1kHz, full power 4 Ω): ≤ 0.05%

Signal to noise ratio (12dBu, 1kHz): ≥ 95dB

Power amplifier gain (1lHz8 Ω): 32 (± 0.5) dB

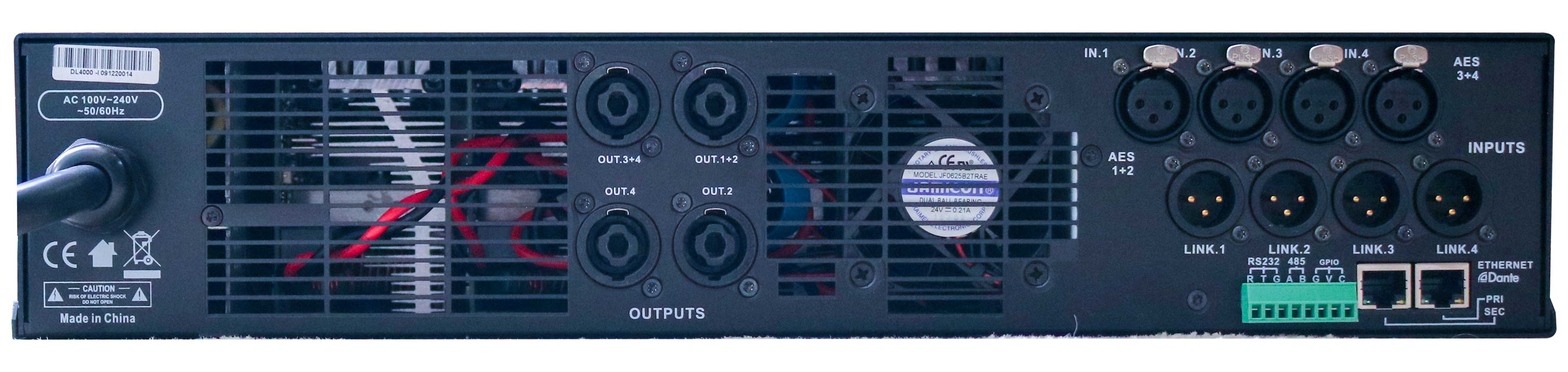

Input interface: balanced input 4 * XLR

Output connection: 4 * Spoken; Terminal post

Online interface: USB/485

Cooling system: fan from front to back, forced cooling

WVW Wide Voltage Work voltage input: 100-260V~47-63Hz

Body: 483x478x88mm

Net weight: 14kg
