Bar

Frequency response special design to avoid auditory fatigue

Theatre

Rotatable and asymmetrical horn

Stage Monitor

13x M8 rigging points

Pole mount socket

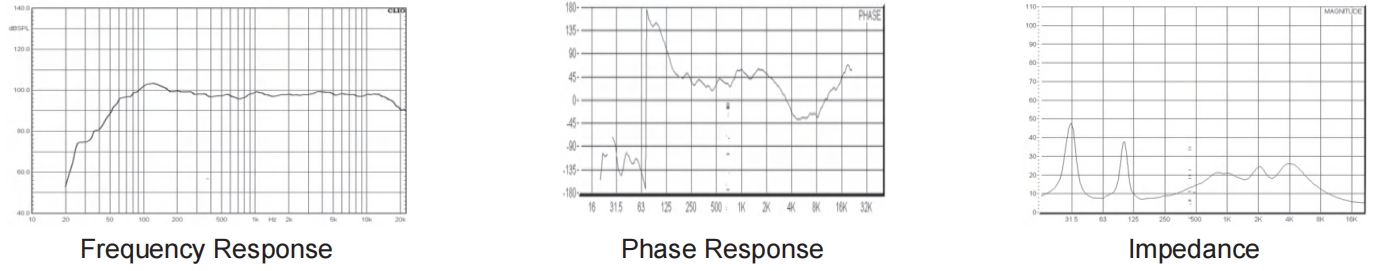

Frequency Respond

60 Hz ~ 18 kHz(±3 dB) ;  45 Hz ~ 20 kHz(-10 dB)

Nominal Coverage(- 6 dB)

50°-100°（H）；55°(V) Constant Directional

Sensitivity(@1w/1m)

98 dB SPL

Powerating(AES)

450 W

Nominal Impedance

8 ohm

Maximum SPL

130 dB (Peak)

Drivers

LF  1 x 15"（75 mm voice coil) woofer

HF  1 x 44 mm voice coil compression driver

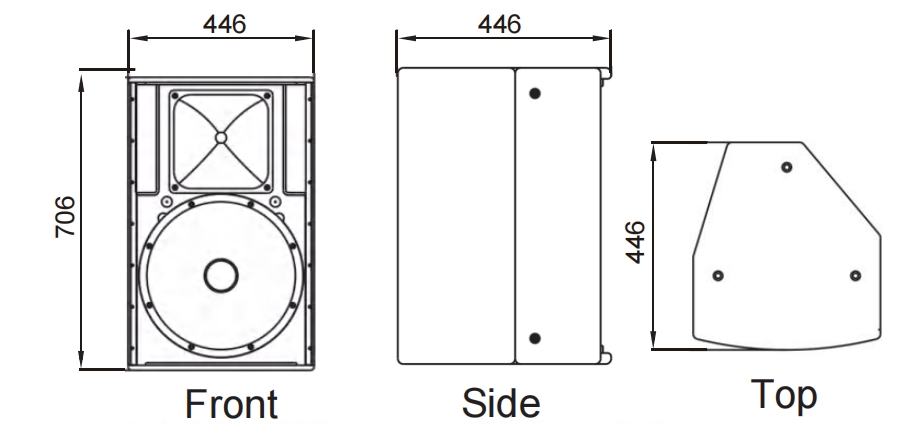

Dimension

706x446x446mm

Weight

31Kg

Speaker Cables

1+1-（Signal Input & Loop）

Connectors

2 x NL4MP Neutrik Speakon connectors

Materials

18 mm，24 mm birch plywood

Finish

Black water paintings

Grille

Black epoxy mesh grille with acoustically

reticul lated foam
