S10P

Characteristic

Select a 10 inch long stroke high-power ultra-low unit

Inverted phase box design

Built in electronic frequency division and power amplifier

Equipped with D · AMP (ClassD Amplifier) digital power amplifier technology

Technical parameter

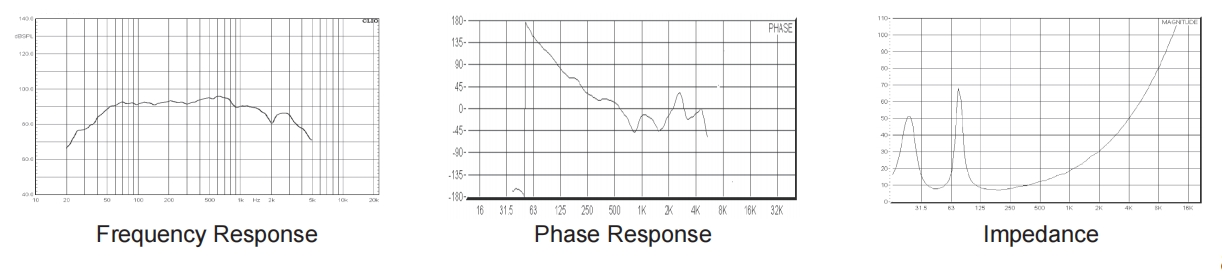

Frequency response: 40 Hz~180 Hz (± 3 dB); 30 Hz~250 Hz (-10 dB)

Nominal directionality (-6dB): No directionality

Rated power: 350W/RMS, 550W/peak

Nominal impedance: 8 ohms

Maximum sound pressure level: 116 dB (continuous) 122 dB (peak)

Power specification: 1 x 10 "(65 mm voice coil) bass unit

Speaker unit: 100-240V 50/60Hz

Signal input

Line in: XLR XLR female seat, 0.775V/20K Ω balanced

Link out: XLR XLR male seat, 0.775V/20K Ω balanced

Electronic frequency division: 80-250Hz, adjustable

Polarity control: Phase 0/180 ° switch control

Exterior

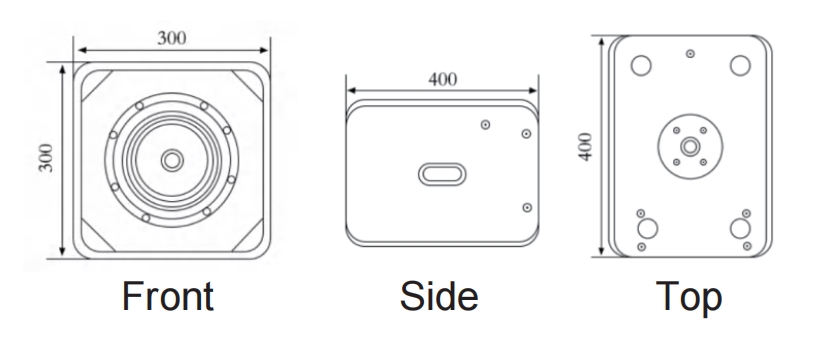

Size: 400 × three hundred × 300 mm

Weight: 12 kg

Material: 15 mm high-density board

Mesh cover: black epoxy porous steel mesh and transparent speaker cotton

Surface treatment: black polyurea paint
