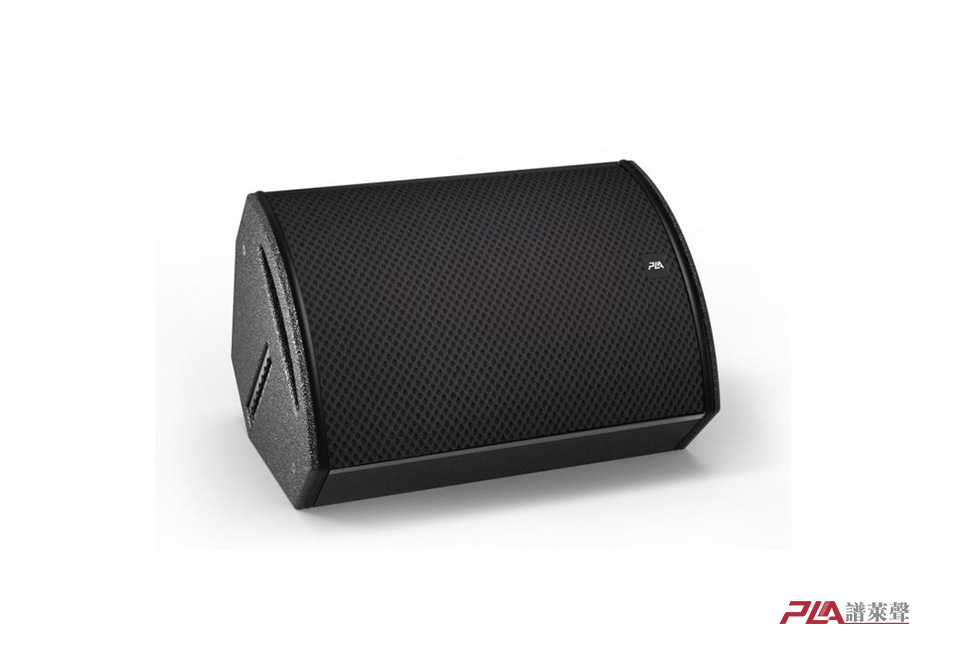

CS12

Features:

1. Equipped with CCT (Coaxial Coherent Technology) coaxial coherence technology

2. According to the frequency response of the performance return design, it is not easy to generate howling

3. Large size neodymium magnetic tweeter unit (75mm voice coil)

4. Coaxial structure, similar to a point sound source, optimizes directionality near frequency division points

Technical parameters:

Frequency response: 60 Hz~18 kHz (± 3 dB) 45 Hz~18 kHz (-10 dB)

Nominal directivity (-6dB): 80 ° (horizontal) 80 ° (vertical) constant direction

Sensitivity (@ 1W/1m): 96 dB SPL

Speaker power: 400W

Impedance: 8 ohms

Maximum sound pressure level: 122 dB/128 dB SPL peak

Speaker unit: LF 1 x 12 "(75mm voice coil) bass unit

HF 1 x 3 "(75mm voice coil) neodymium magnetic compressed treble

Physical data:

Height x width x depth: 600 × three hundred and ninety-five × 395 mm

Weight: 25 kg

Connector: 2 × 4-core WP4 speaker base, 2 × 4-core Neutrik NL4 speaker base

Connection method: WP4:1-2+

NL4:1+1-

Box material: 18mm birch multi-layer board

Surface treatment: black polyurea paint

Grid mesh: surface mesh covered with sound permeable mesh fabric
